Length

91.3 in.

Width

36.4 in.

Seat Height, Laden +

25.8 in.

Ground Clearance

4.9 in.

Rake

30

Trail

6.2 in.

Wheelbase

64.2 in.

Tire, Type

Dunlop® Harley-Davidson Series, bias blackwall front and rear

Tires, Front Specification

100/90B19,57H,BW

Tires, Rear Specification

150/80B16,77H,BW

Fuel Capacity

3.5 gal.

Oil Capacity (w/filter)

5 qt.

Weight, In Running Order

646 lb.

Engine+

Milwaukee-Eight® 117 Classic

Bore

4.075 in.

Stroke

4.5 in.

Displacement

117 cu in

Compression Ratio

10.3:1

Fuel System+

Electronic Sequential Port Fuel Injection (ESPFI)

Exhaust

2-into-1; catalyst in header

Engine Torque Testing Method

J1349

Engine Torque+

120 ft-lb

Engine Torque (rpm)

2500

Horsepower

98 HP / 73 kW @ 4600 rpm

Lean Angle, Right (deg.)

28.5

Lean Angle, Left (deg.)

28.5

Fuel Economy Testing Method

Estimated City/Hwy

Fuel Economy+

47 mpg

Primary Drive

Chain, 34/46 ratio

Gear Ratios (overall) 1st

9.311

Gear Ratios (overall) 2nd

6.454

Gear Ratios (overall) 3rd

4.793

Gear Ratios (overall) 4th

3.882

Gear Ratios (overall) 5th

3.307

Gear Ratios (overall) 6th

2.79

Front Fork

Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; gaiter covers

Rear Shocks

Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment

Wheels, Optional Style Type

Painted aluminum tubeless laced wheel

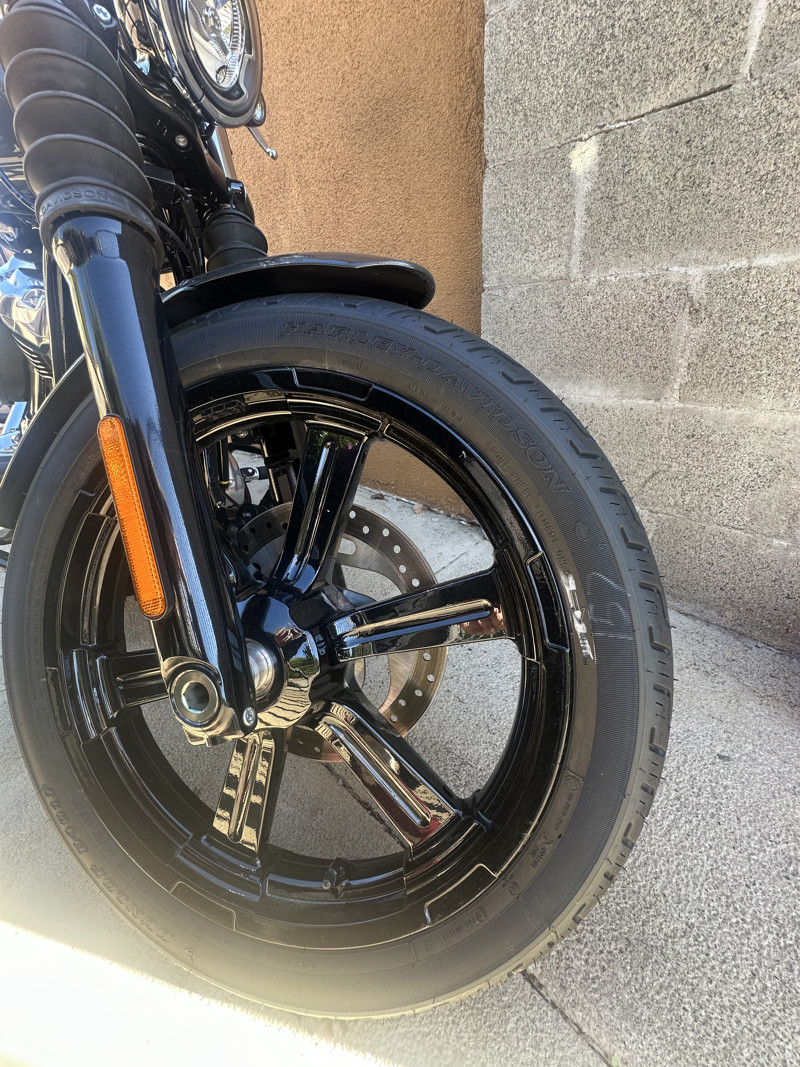

Wheels, Front Type+

Black, Annihilator cast aluminum

Wheels, Rear Type+

Black, Annihilator cast aluminum

Brakes, Caliper Type

4-piston fixed front and 2-piston floating rear

Brakes, Rotor Type

Solid, uniform expansion rotors

Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights+

Headlamp: All LED, low beam, high beam and signature position lamp; Tail/Stop/Front Signal Lights: LED Bullet Turn Signals

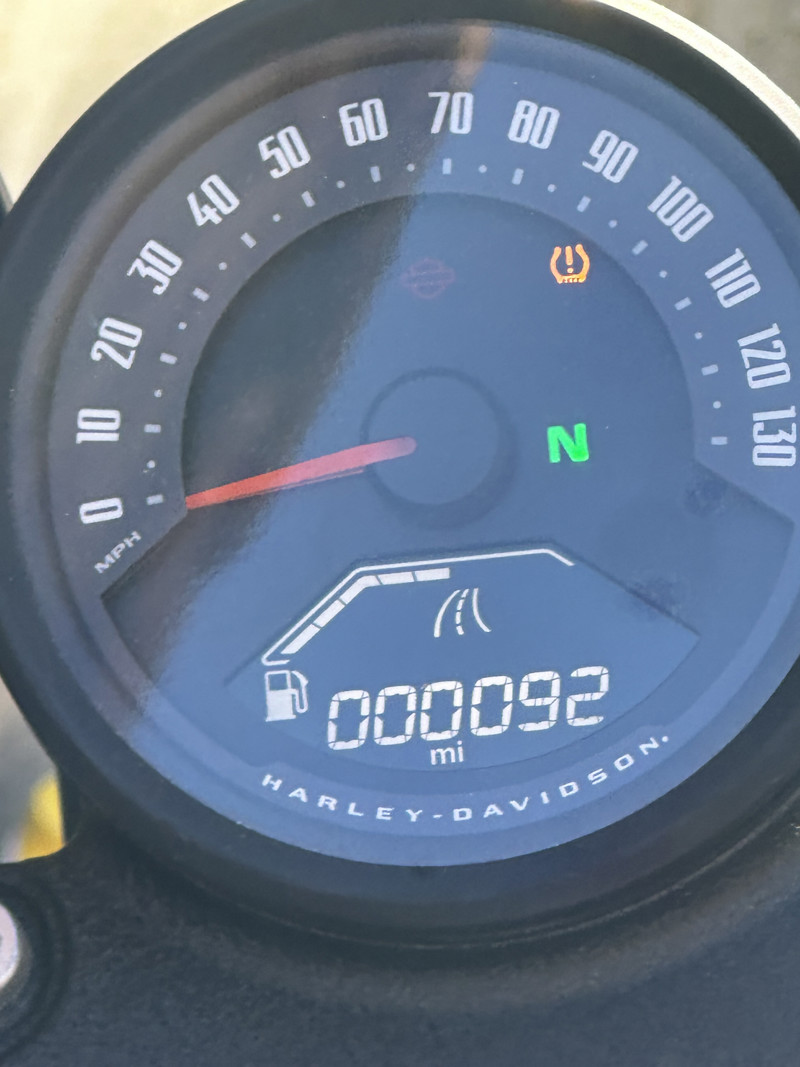

Gauges

4-inch (102 mm) analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer indication

Here’s the link to the bike description on the Harley Davidson website:

https://www.harley-davidson.com/us/en/motorcycles/street-bob.html#specs
