BRAKES/WHEELS/TIRES

Brakes

ABS

Front / Rear Caliper - 32 mm, 4-piston fixed

Front Type - Dual floating rotors

Rear Type - Fixed rotor

Rider Safety Enhancements - Electronic Linked Braking (ELB)

WheelsFront / Rear - Slicer II cast aluminum with clear coat9

Tires

Front - BW 130 / 70B18 63H

Rear - BW 180 / 55B18 80H

Front / Rear Type - Dunlop Harley-Davidson Series, bias blackwall

DIMENSIONS

Length102.3 in. (2,600 mm)Weight

As Shipped - 880 lb. (399 kg)

In Running Order - 917 lb. (416 kg)

Ground Clearance

5.3 in.

Right / Left Lean Angle - 32°

Wheelbase64 in. (1,625 mm)

Seat HeightLaden - 27.5 in. (699 mm)7

DRIVETRAIN

Primary DriveChain, 34/46 ratio

ELECTRICAL

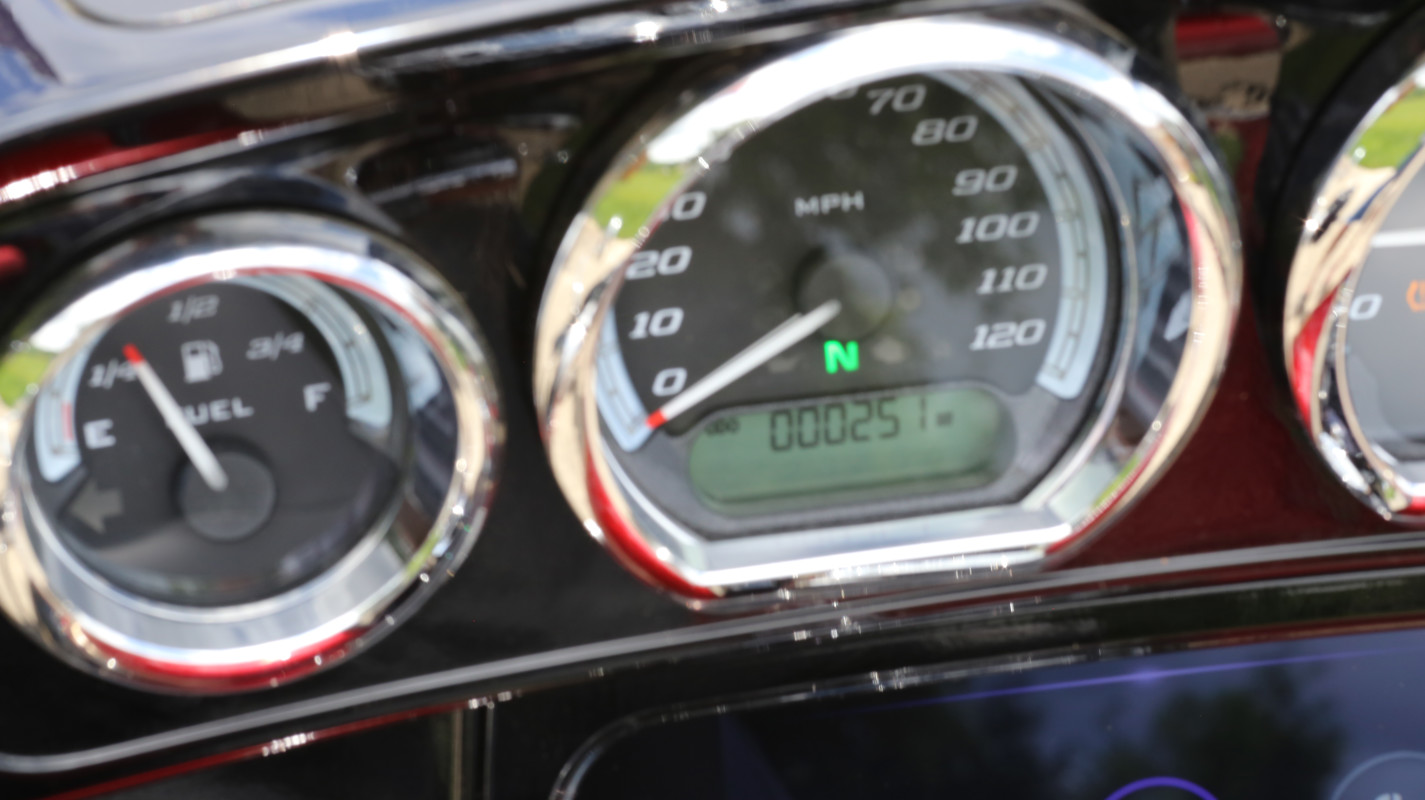

InstrumentationGauges - Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicatorsLighting(As per country regulation), headlamp, tail/stop/front signal lights8 - LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam with switchable 20-watt, 1,220 lumen LED Fog Lamps. Total of 2,136 lumen output at low beam with fog lights, 8W/28W tail/stop and front signal lights

Advanced Electronics

Infotainment system - Boom!™ Box GTS

Type - Full Color TFT

Screen Size - 6.5 in.

Watts Per Channel - 25

Speakers - 4

Speaker Size - 5.25 in. standard

Headset Specifications (if equipped) - 16-64 ohms

AM / FM - Standard

Weather Band (WB) - Standard

SD Card, Flash Drive and MP3 - via USB Connection - Supported

SiriusXM Presets - 20 - P&A Upgrade (USA & Canada only)

Languages - English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic

Hands-free Mobile Phone - via Bluetooth - Standard

Voice Recognition Languages: Phone functions only / Tuner / Media / Navigation - Phone dependent

Rider / Passenger Intercom - Standard

Vehicle Information Screen (Air temperature, oil pressure and EITMS) - Standard

Text-to-Speech (TTS) Languages - Phone dependent

USB - USB / MTP / iPod / iPhone

Bluetooth - Phone / Media Supported

ENGINE

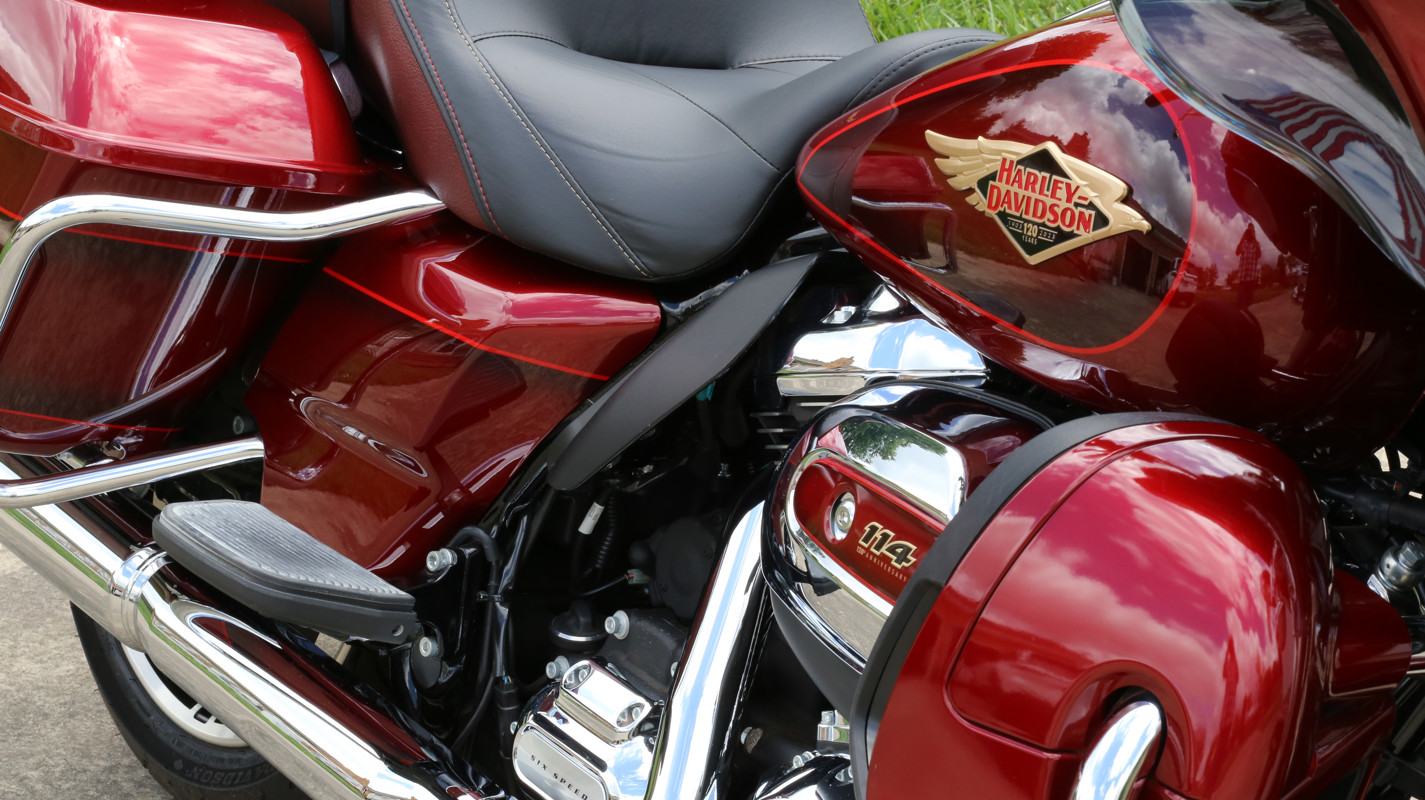

EngineTwin-Cooled™ Milwaukee-Eight 1141Displacement1,868 cc (114 cu. in.)

Bore x Stroke4.016 x 4.5 in. (102 x 114.3 mm)Torque

122 ft. lb. (166 Nm)2 @ 3,000

Testing Method - J1349

Compression Ratio10.5:1Gear Ratio

Overall

1st - 9.593

2nd - 6.65

3rd - 4.938

4th - 4

5th - 3.407

6th - 2.875

Fuel SystemElectronic Sequential Port Fuel Injection (ESPFI)3Exhaust2-1-2 dual with tapered mufflers

Fuel Capacity6 gal. (22.7 l)Oil CapacityWith filter - 5 qt. (4.7 l)

MPG RatingEstimated City / Hwy - 43 mpg (5.5 l/100 km)5

OPERATIONAL

Rear SuspensionShocks - Premium standard height hand-adjustableRake26°

Trail6.7 in. (170 mm)ForkFront - 49 mm Dual Bending Valve

OTHER

Includes

Security System - Standard

Cruise Control - Standard

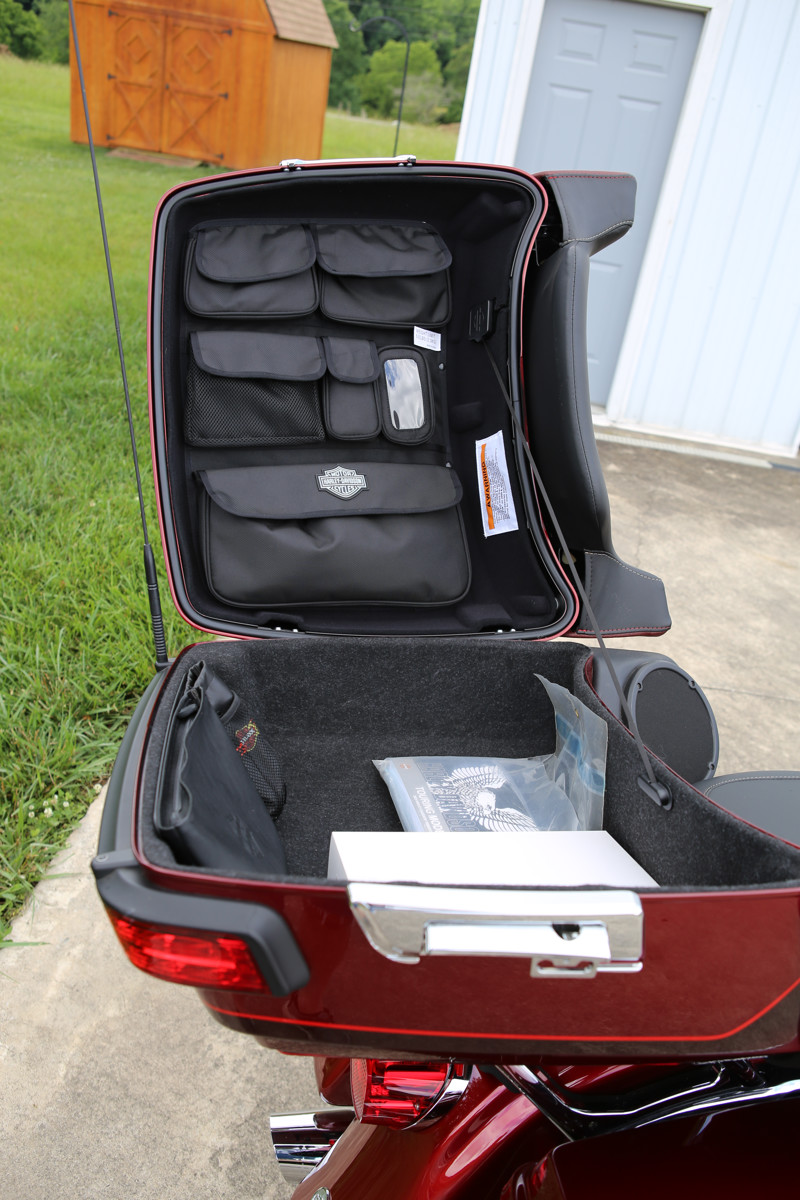

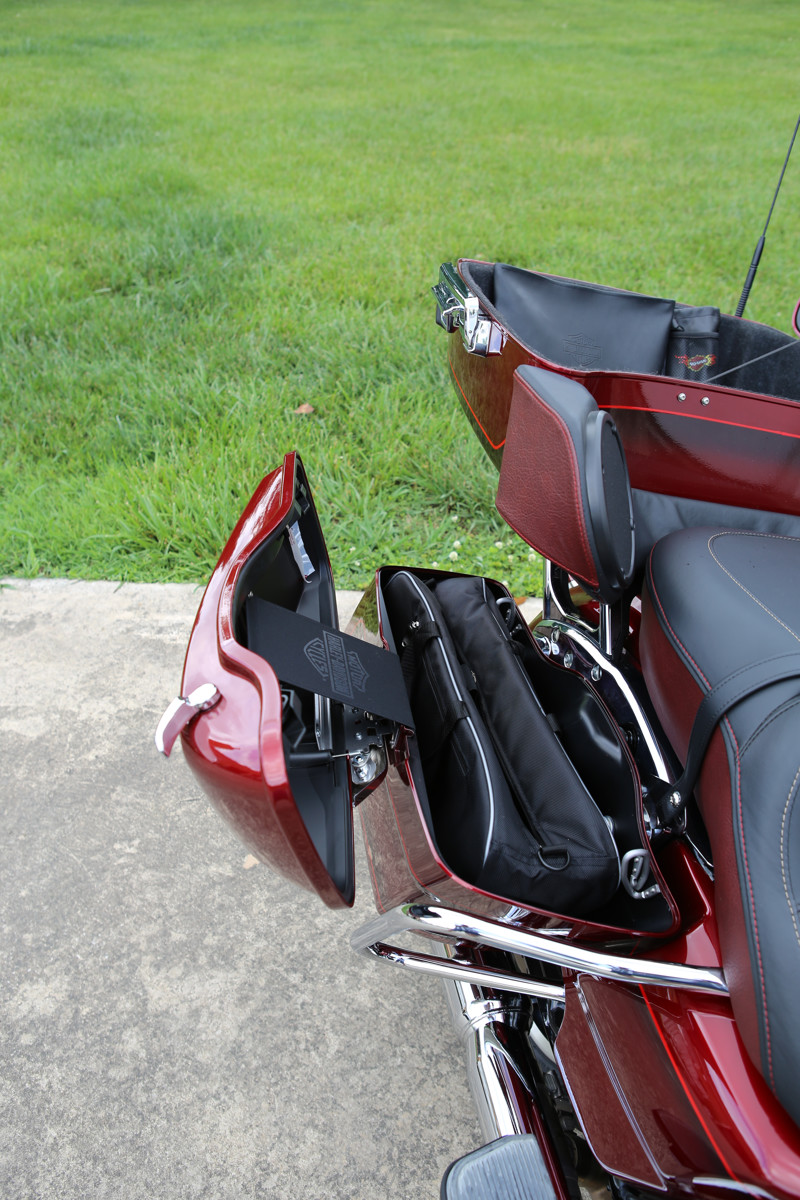

Cargo CapacityLuggage - 4.7 cu. ft. (0.132 m3)
